In chemical plants, steam systems, refineries, and water treatment facilities, a small valve failure can cause leakage, production loss, or an unplanned shutdown. A China globe valve manufacturer for chemical plants must therefore address more than purchase price. The valve needs the correct pressure class, trim material, packing, actuator, and inspection records for the actual fluid and operating cycle. This guide explains how to choose a china globe valve, check its technical data, install it correctly, and reduce future maintenance risk.
A globe valve is a linear-motion valve that controls fluid flow by moving a disc or plug toward and away from a fixed seat. Unlike a gate valve, which is normally used for full-open or full-closed isolation, a globe valve is designed for throttling and flow regulation.
The valve body usually contains three main flow-path areas: the inlet passage, the seat chamber, and the outlet passage. When the stem moves the disc downward, the opening becomes smaller. This creates a controlled pressure drop and allows the operator to adjust flow.
The term “China globe valve” describes a globe valve manufactured in China. It does not define one fixed quality level or one material grade. Product quality depends on design control, casting or forging quality, welding procedures, machining accuracy, pressure testing, traceability, and compliance with the required standard.
Common technical terms include:
- Nominal size: The pipe connection size, often written as DN or NPS.
- Pressure class: The pressure-temperature rating, such as Class 150, Class 300, or Class 600.
- Trim: Internal wetted or moving parts, including the disc, seat, stem, and related components.
- Flow coefficient, Cv: A measure of how much water flow passes through the valve at a defined pressure drop.
- Bonnet: The top section that supports the stem and provides access to internal parts.
- Stuffing box and packing: The sealing area around the moving stem.
What Is a China Globe Valve?
Material selection becomes critical when the process fluid contains acids, chlorides, solvents, abrasive particles, or high-temperature steam. Corrosion can reduce wall thickness, damage the seat, or attack the stem. Erosion can remove metal from high-velocity areas, especially near the seat and valve plug.

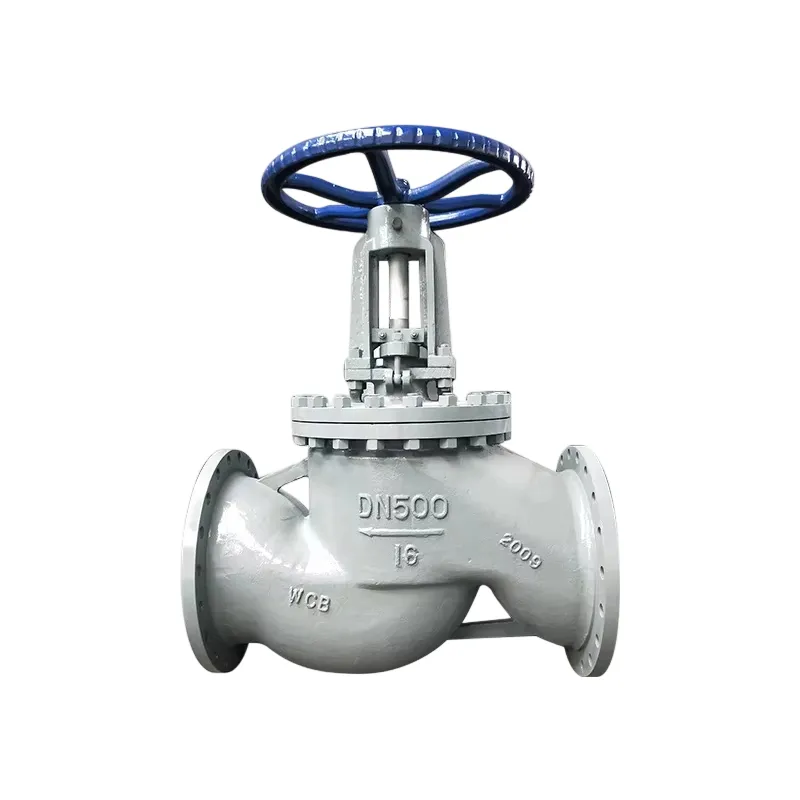

Why Corrosive and Erosive Service Needs Better Materials
For standard water or general industrial service, carbon steel bodies may be suitable when the fluid, temperature, and corrosion allowance support that choice. Stainless steel may be selected for improved corrosion resistance, but “stainless steel” is not a complete specification. For example, 316 stainless steel generally offers better resistance to chloride-containing environments than 304 stainless steel, although the actual result depends on chloride concentration, temperature, pH, oxygen level, and flow conditions.
More demanding services may require materials such as duplex stainless steel, alloy steel, nickel alloys, or special corrosion-resistant overlays. The choice should be based on a documented compatibility review rather than a general material label.
For abrasive or flashing service, the internal design is just as important as the body material. Hardened trim, stellite-facing, reduced-pressure-drop designs, or multi-stage throttling may reduce local wear. However, these options can affect flow capacity, cost, and maintenance time. The final selection should balance chemical resistance, erosion resistance, temperature, pressure, and expected operating cycles.
China Globe Valve Applications in Industrial Systems
Globe valves are used where operators need reliable regulation or frequent adjustment. Typical applications include:
- Chemical processing: Acid, alkali, solvent, and reagent control lines.
- Petrochemical plants: Hydrocarbon, steam, cooling water, and process utility systems.
- Power generation: Boiler feedwater, extraction steam, auxiliary steam, and drain systems.
- Oil and gas: Pressure control, bypass lines, injection systems, and utility service.
- Water treatment: Chemical dosing, filtration, sludge handling, and treated-water systems.
- Marine systems: Cooling water, fuel, ballast, and other controlled flow services.
- HVAC and building utilities: Hot water, chilled water, and steam regulation.
They are especially useful on bypass lines around pumps, control valves, heat exchangers, and pressure-reducing stations. A globe valve can also serve as an isolation valve, but using it as the main isolation device in a large pipeline may create a higher pressure drop than a gate or ball valve.
How to Select the Correct China Globe Valve
The safest selection process starts with the process data, not the catalog number. Prepare the following information before requesting a quotation:
- Fluid name and chemical composition.
- Normal, minimum, and maximum flow rate.
- Inlet and outlet pressure.
- Normal and maximum temperature.
- Pipe size and connection standard.
- Required flow direction.
- Operating frequency and expected service life.
- Manual, pneumatic, electric, or hydraulic actuation.
- Required leakage class and testing standard.
- Environmental conditions, including outdoor exposure and salt spray.
Next, confirm the pressure-temperature rating. A Class 300 valve does not have one universal allowable pressure at every temperature. The permitted pressure normally decreases as temperature rises, and the exact limit depends on the body material and applicable standard.
For flow sizing, engineers may use the simplified liquid relationship:
Q = Cv × √(ΔP / SG)
In this formula, Q is liquid flow, Cv is the flow coefficient, ΔP is the pressure drop, and SG is specific gravity. Units must match the selected engineering system. For gases and steam, compressibility and critical pressure-drop effects must also be considered. A valve that is too small may create excessive pressure loss and noise. A valve that is too large may operate close to the seat, making control unstable and increasing wear.
Then select the body, trim, gasket, and packing. PTFE packing may suit many chemical services at moderate temperatures, while graphite packing is often used for higher-temperature applications. Neither option should be selected without checking the fluid, temperature, emissions requirement, and manufacturer data.
For high-cycle applications, consider a control-style globe valve with a characterized plug or cage-guided design. For simple manual throttling, a standard plug-and-seat arrangement may be enough. The operating torque, actuator thrust, and shutoff force should be calculated from the actual differential pressure.
Standards and Inspection Requirements for a China Globe Valve
Industrial buyers commonly compare globe valve designs against recognized standards. The correct standard depends on the valve type, service, end connection, and project specification.
- ASME B16.34: Covers pressure-temperature ratings, materials, dimensions, and testing-related requirements for many industrial valves.
- API 598: Commonly used for pressure testing and inspection of valves.
- API 6D: Applies mainly to pipeline valves and may be relevant to specific oil and gas projects.
- ASME B16.5: Covers many flanged valve and pipe flange dimensions for smaller nominal sizes.
- ASME B16.47: Covers larger-diameter flanges in applicable systems.
- ISO 15848-1: Addresses fugitive emissions classification and testing for industrial valves.
- EN 12266-1: Provides valve testing requirements used in many international projects.
Inspection documents should match the purchase order. Depending on the risk level, buyers may request material test certificates, positive material identification, dimensional reports, visual inspection, non-destructive testing, shell tests, seat tests, fugitive emission tests, and coating records.
For pressure testing, the shell test checks the body boundary, while the seat test checks shutoff performance. A successful factory test does not guarantee correct field operation if the valve is installed incorrectly, contaminated, or exposed to a service outside its rating.
Installation Guide for a China Globe Valve
Before installation, compare the valve nameplate with the piping specification. Check size, pressure class, body material, trim, flow direction, and temperature rating. Remove protective covers only when the valve is ready to enter the line.
Clean the pipe interior. Welding slag, rust, sand, and gasket fragments can damage the seat during the first opening cycle. For new piping, flushing or blowing should be completed according to the project procedure before the valve is placed into normal service.
Install the valve in the marked flow direction. Many globe valves are designed so that pressure acts below the disc during normal throttling. Reversing the direction can increase operating force and reduce control performance. The manufacturer’s flow arrow and installation drawing should take priority.
Support the pipe independently. The valve should not carry bending loads from misaligned pipework. Tighten flange bolts in a cross pattern and use the specified gasket. Excessive bolt force can distort the flange or gasket, while insufficient force can cause leakage during pressure changes.
After installation, operate the handwheel or actuator through its full travel when the process condition allows it. Confirm that the stem moves smoothly, the position indicator is accurate, and the limit switches or positioner are correctly set.
Commissioning and Operating Practices
During commissioning, open the valve gradually. A sudden pressure change can cause water hammer, flashing, or vibration. If the line contains liquid and the downstream section is empty, controlled filling is especially important.
Do not use a handwheel extension or pipe as a lever unless the manufacturer specifically permits it. Excessive force may bend the stem, damage the seat, or overload the actuator.
For automated service, calibrate the positioner and check the fail position. A process safety review should decide whether the valve must fail open, fail closed, or remain in place after loss of air or power.
Record the following values during the first operating period:
- Upstream and downstream pressure.
- Process temperature.
- Valve position and flow rate.
- Actuator supply pressure or motor current.
- Stem leakage or packing leakage.
- Noise, vibration, or abnormal temperature rise.
These records create a baseline. Later changes can show whether the valve is suffering from seat wear, packing damage, cavitation, erosion, or actuator problems.
Maintenance and Troubleshooting for a China Globe Valve
A maintenance plan should follow service severity rather than use one fixed interval for every valve. A clean water valve with few operating cycles may need less attention than a chemical throttling valve that moves hundreds of times each day.
Common problems and practical checks include:
| Problem | Possible cause | Recommended check |
|---|---|---|
| Leakage through the closed valve | Damaged seat, foreign material, wrong closing force, or erosion | Inspect pressure direction, flush the line if safe, and test seat leakage |
| Leakage around the stem | Loose or worn packing, scratched stem, or thermal cycling | Adjust packing carefully and inspect the stem during shutdown |
| High operating torque | Overpressure, corrosion, dry stem, misalignment, or damaged trim | Check differential pressure, lubrication requirements, and actuator sizing |
| Unstable flow control | Valve oversized, poor rangeability, flashing, or incorrect positioner setup | Compare actual flow with the Cv calculation and review control tuning |
| Noise and vibration | High velocity, cavitation, two-phase flow, or excessive pressure drop | Measure pressure drop and review trim design and operating conditions |
Before any repair, isolate the valve, release trapped pressure, drain or purge hazardous fluid, and apply the site lockout/tagout procedure. Chemical service may require gas testing, neutralization, or special personal protective equipment.
Advantages and Limitations of a China Globe Valve
A well-selected globe valve offers several practical benefits:
- Good flow regulation for many liquid, gas, and steam services.
- Available in forged or cast body designs.
- Flexible trim choices for temperature and corrosion requirements.
- Suitable for manual or automated operation.
- Serviceable packing and internal components in many designs.
- Compatibility with common international flange and testing standards.
The main limitation is pressure loss. The internal flow path is more restrictive than the path through a full-bore gate or ball valve. Continuous throttling can also generate heat, noise, cavitation, or erosion when the pressure drop is too high.
For this reason, a globe valve should not be chosen only because its nominal size matches the pipe. The required Cv, pressure drop, fluid phase, velocity, and operating cycle must also be reviewed.
How to Evaluate a China Globe Valve Supplier
Supplier evaluation should cover technical capability and documentation, not only the quoted unit price. Request a data sheet that clearly lists body material, trim material, pressure class, end connection, seat design, packing, test standard, and operating limits.
Ask whether the manufacturer can provide:
- Material certificates with heat numbers.
- Pressure and seat test reports.
- Dimensional inspection records.
- Non-destructive testing records when required.
- Fugitive emission test results for low-emission service.
- Coating and surface preparation information.
- Spare parts lists and maintenance instructions.
- Actuator sizing documents for automated valves.
Review the supplier’s ability to manage special materials and custom requirements. A company that can manufacture a carbon steel valve may not have the same process controls for duplex stainless steel, nickel alloy trim, or corrosion-resistant overlays.
Chenyu Valve can be included in the comparison process when buyers need to discuss valve configuration, material selection, inspection documents, and project-specific operating conditions. The final product should always be confirmed against the approved technical specification.
China Globe Valve Buying Checklist
Before placing an order, use this checklist:
- Confirm the medium, concentration, pressure, temperature, and flow rate.
- Confirm the valve size, pressure class, end connection, and face-to-face dimension.
- Verify body, bonnet, disc, seat, stem, gasket, and packing materials.
- Check whether the valve is for isolation, throttling, or automatic control.
- Calculate Cv and review pressure drop at minimum and maximum flow.
- Specify the required leakage class and pressure test standard.
- Define inspection, documentation, marking, coating, and packing requirements.
- Confirm actuator type, fail position, control signal, and accessory requirements.
- Review spare parts and maintenance access.
- Approve the final drawing before production.
A clear purchase specification reduces disputes because both the buyer and manufacturer work from the same process conditions. It also makes replacement easier when the valve reaches the end of its service life.
Final Steps Before Ordering a China Globe Valve
A globe valve is most reliable when its design matches the actual process. Start with the fluid and operating data, select the body and trim materials, calculate the flow requirement, confirm the pressure-temperature rating, and define factory inspection before approving the order. After delivery, inspect the nameplate and documents, follow the installation guide, and record commissioning values for future maintenance.
For the next step, prepare your line size, medium, pressure, temperature, flow rate, material preference, and actuator requirements. Send these details to Chenyu Valve for a technical review and request the applicable drawing, data sheet, and inspection plan. If your application involves chemical corrosion, high-pressure steam, or frequent throttling, ask specifically about a China globe valve for high-pressure steam and its verified pressure-temperature and leakage data.
