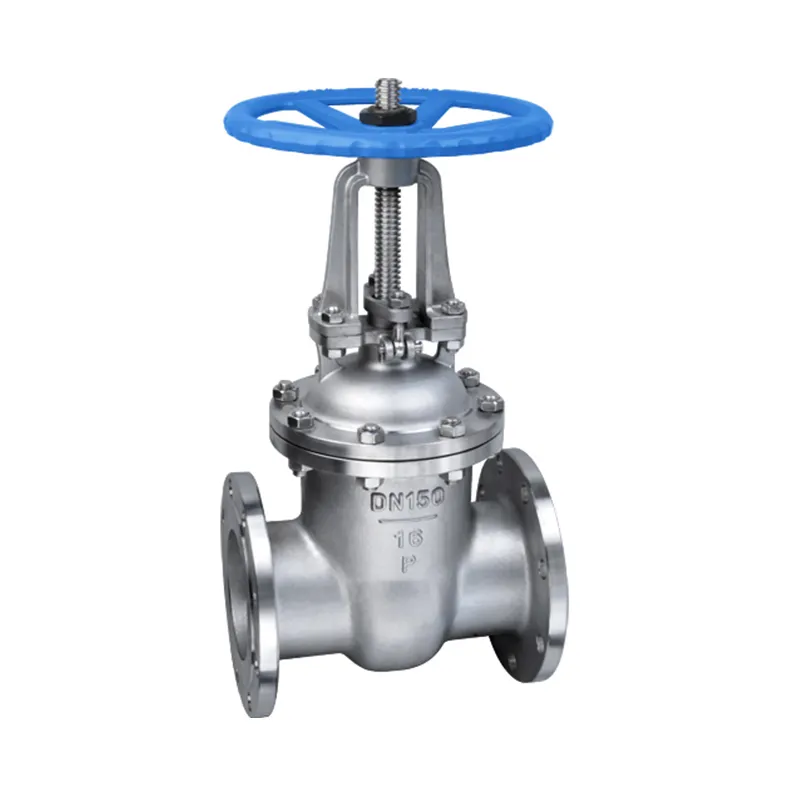

Din Standard Flange Gate Valve

Inquire Now Next Product

Product Description

DIN Standard Flanged Gate Valve refers to a gate valve that is designed and constructed according to the German standard (DIN standard), It is mainly used to cut off or regulate the flow of media in various industrial piping systems..DIN Standard gate valves are generally available in two length series: a short series (F4) and a long series (F5/F7). We can provide corresponding matching series according to the needs of different pipeline design conditions.

Main Features of the Product

Size Range	DN40-DN1200
Pressure Range	PN10-PN250
Connection Ends	RF,BW,RTJ,FM
Main Material	WCB,WCC,GG25,GGG50,GGG40,LCB,LCC,CF8,CF8M,2205,Monel,Bronze,Duplex Stainless steel etc.
Bonnet Type	Pressure Self-sealing and Bolted Bonnet
Operation	Manual, Gear, Electric, Pneumatic etc...
Sealing Material	Soft seal, Hard face etc...
Seat type	Replaceable
Design and Manufacture Standard	DIN3202
Length Dimension	DIN3202-F1/F4/F5/F7
Connection ends	EN1092-1
Testing & inspection	API598
Applications	Water Systems,Oil and Gas Industry,Power Plants,Chemical etc..

Advantages of DIN FLANGE GATE VALVE:

1) Excellent sealing performance;

2) Low fluid resistance;

3) Unrestricted flow of the medium;

4) Excellent casting process ability and wide application range;

5) Simple opening and closing, convenient use.

Technical Specifications

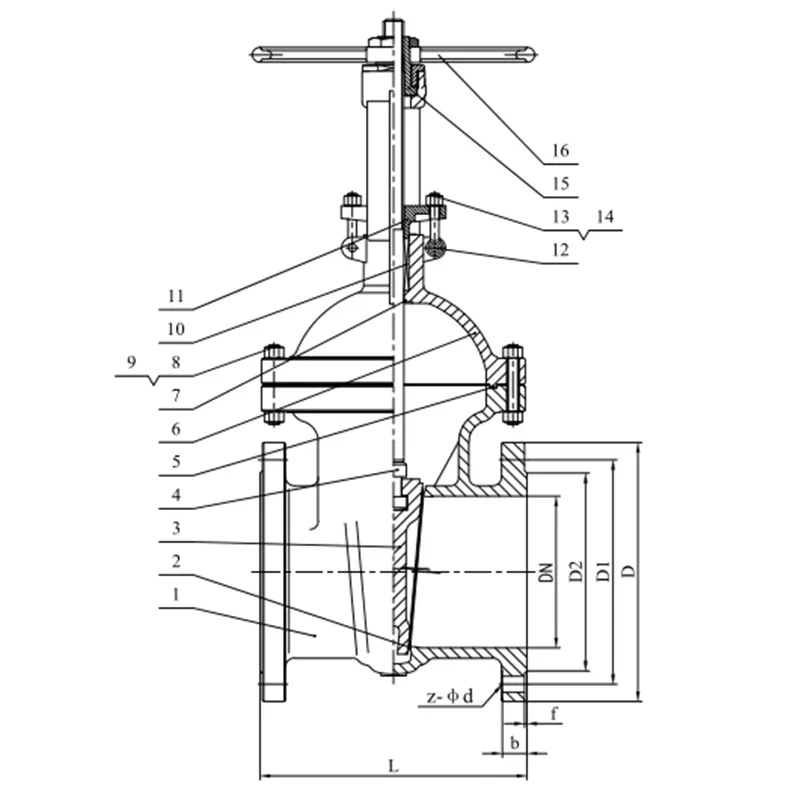

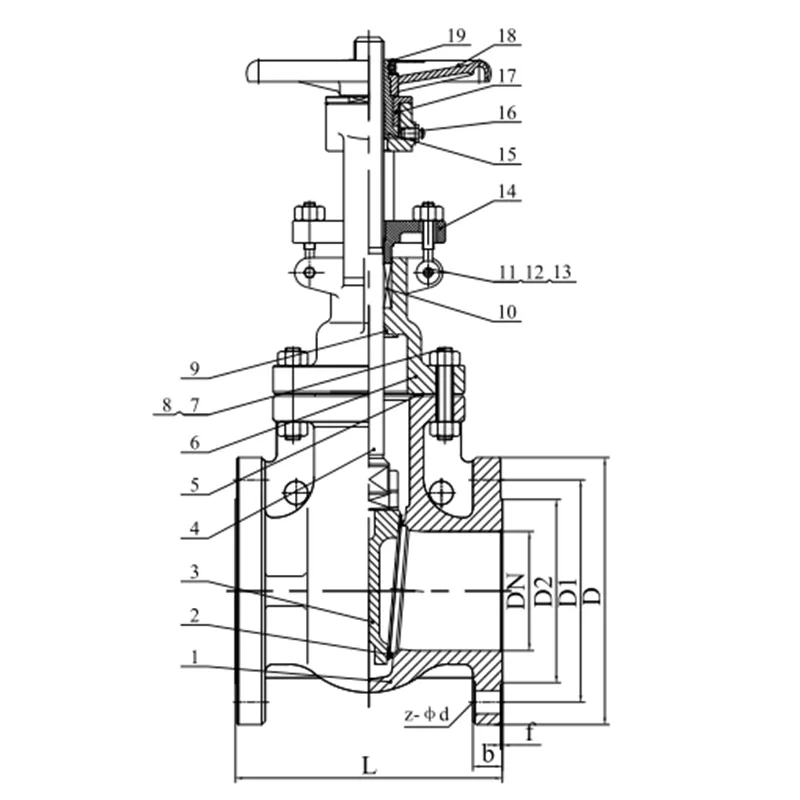

Main Dimension

DN	PN16 L (MM)	PN25 L (MM)	PN40 L (MM)	PN63 L (MM)	PN100 L (MM)
15	130	130	130	170	170
20	150	150	150	190	190
25	160	160	160	210	210
32	180	180	180	230	230
40	200	200	200	240	240
50	250	250	250	250	250
65	270	280	290	280	280
80	280	280	310	310	310
100	300	300	350	350	350
125	325	325	400	400	400
150	350	350	450	450	450
200	400	400	550	550	550
250	450	450	650	650	650
300	500	500	750	750	750
350	550	550	850	850	850
400	600	600	950	950	950
450	650	650	1050	1050	/
500	700	700	1150	1150	/
600	800	800	1350	1350	/
