Api Standard Flange Gate Valve

Api standard flange Gate Valve refers to a gate valve that is designed and constructed according to the American Petroleum Institute (API) standards, specifically for use in flanged pipe connections.

Inquire Now

Product Description

Api Standard Flange Gate Valve:

Api standard flange Gate Valve refers to a gate valve that is designed and constructed according to the American Petroleum Institute (API) standards, specifically for use in flanged pipe connections. This gate valve adopts a wedge-shaped gate design. The sealing surface between the gate valve and the valve seat ensures sealing through the wedge force, These types of valves are commonly used in high-pressure, high-temperature, and corrosive environments where durability and reliability are essential, such as in the oil, gas, and petrochemical industries.

Main Features of the Product:

Size Range	2”-48” (DN15-DN1200)
Pressure Range	150LB~2500LB
Connection Ends	FLG, BW
Main Material	WCB, WCC, LCB, LCC, GG25, GGG40, CF8, CF8M, 2205, Monel, Bronze, Duplex Stainless steel etc.
Bonnet Type	Pressure Self-sealing and Bolted Bonnet
Operation	Manual Hand wheel, Gear, Electric, Pneumatic etc...
Sealing Material	Soft seal, Hard face etc...
Seat type	Replaceable or Integral
Design and Manufacture	API600, API603
Connection ends	ASME B16.5 and ASME B16.47 A
Testing & inspection	API598
Applications	Water Systems, Oil and Gas Industry, Power Plants, Chemical etc.

Advantages of API FLANGE GATE VALVE:

1) Excellent sealing performance;

2) Low fluid resistance;

3) Unrestricted flow of the medium;

4) Excellent casting process ability and wide application range;

5) Simple opening and closing, convenient use.

Technical Specifications

Api Standard Flange Gate Valve

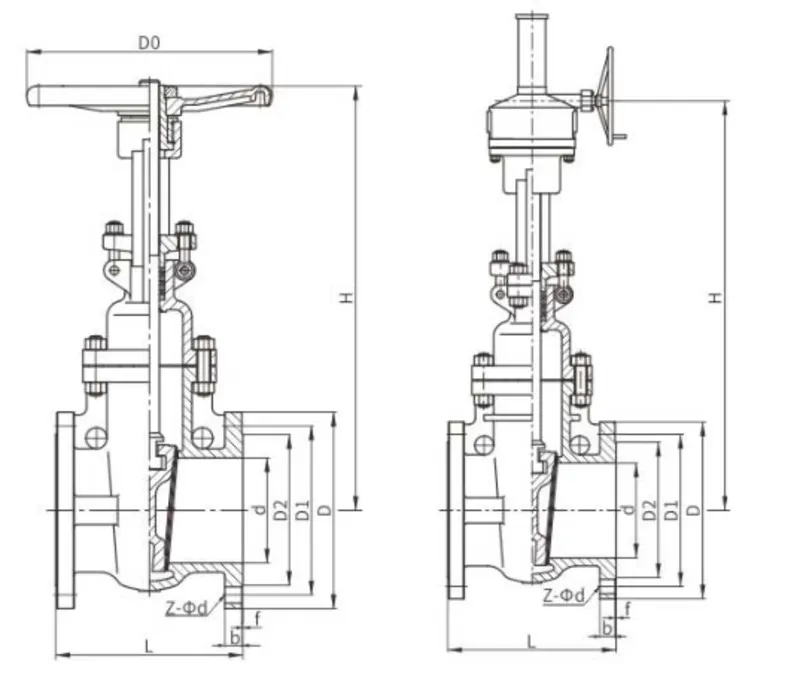

Main Dimension: 150LB-600LB

Model	Specification (inches/mm)
	inch DN	L (mm)	D (mm)	D1 (mm)	D2 (mm)	b (mm)	z-Φd (mm)	H (mm)	D0 (mm)
Z41W-150Lb	1/2"	15	108	89	60.5	35	12 4-Φ15	155	120
	3/4"	20	117	98	70	43	12 4-Φ15	160	120
	1"	25	127	108	79.5	51	12 4-Φ15	200	140
	1 1/4"	32	140	117	89	64	13 4-Φ15	245	160
	1 1/2"	40	165	127	98.5	73	15 4-Φ15	285	180
	2"	50	178	152	120.5	92	16 4-Φ19	315	200
	2 1/2"	65	190	178	139.5	105	18 4-Φ19	375	220
	3"	80	203	190	152.5	127	19 4-Φ19	400	240
	4"	100	229	229	190.5	157	24 8-Φ19	460	280
	5"	125	254	254	216	186	24 8-Φ22	540	300
	6"	150	267	279	241.5	216	26 8-Φ22	620	320
	8"	200	292	343	298.5	270	29 8-Φ22	800	400
	10"	250	330	406	362	324	31 12-Φ25	850	450
	12"	300	356	483	432	381	32 12-Φ25	1000	500
	14"	350	381	533	476	413	35 12-Φ29	1300	600
	16"	400	406	597	540	470	37 16-Φ29	1400	600
	18"	450	432	635	578	533	40 16-Φ32	1600	650
	20"	500	457	698	635	584	43 20-Φ32	1850	650
	24"	600	508	813	749.5	692	48 20-Φ35	2200	700

Model	Specification (inches/mm)
Z41W-300Lb	inch DN	L (mm)	D (mm)	D1 (mm)	D2 (mm)	b (mm)	z-Φd (mm)	H (mm)	D0 (mm)
	1/2"	15	140	95	66.5	35	15 4-Φ15	155	120
	3/4"	20	152	117	82.5	43	16 4-Φ19	160	120
	1"	25	165	124	89	51	18 4-Φ19	200	140
	1 1/4"	32	178	133	98.5	64	19 4-Φ19	250	160
	1 1/2"	40	190	156	114.5	73	21 4-Φ22	290	180
	2"	50	216	165	127	92	22 8-Φ19	330	220
	2 1/2"	65	241	190	149	105	25 8-Φ22	385	250
	3"	80	283	210	168.5	127	29 8-Φ22	410	280
	4"	100	305	254	200	157	32 8-Φ22	480	300
	5"	125	381	279	235	186	35 8-Φ22	630	350
	6"	150	403	318	270	216	37 12-Φ22	690	350

Model	Specification (inches/mm)
	inch DN	L (mm)	D (mm)	D1 (mm)	D2 (mm)	b (mm)	z-Φd (mm)	H (mm)	D0 (mm)
Z41W-600Lb	1/2"	15	165	95	66.5	35	15 4-Φ15	155	120
	3/4"	20	190	118	82.5	43	16 4-Φ19	160	120
	1"	25	216	124	89	51	18 4-Φ19	200	140
	1 1/4"	32	229	133	98.5	64	21 4-Φ19	250	160
	1 1/2"	40	241	156	114.5	73	23 4-Φ22	290	180
	2"	50	292	165	127	92	26 8-Φ19	350	250
	2 1/2"	65	330	190	149	105	29 8-Φ22	430	250
	3"	80	356	210	168	127	32 8-Φ22	470	300
	4"	100	432	273	216	157	38 8-Φ25	570	350
	5"	125	508	330	266.5	186	45 8-Φ29	700	400
	6"	150	559	356	292	216	48 12-Φ29	750	500
	8"	200	660	419	349	270	56 12-Φ32	830	600
	10"	250	787	508	432	324	64 16-Φ35	1210	650
	12"	300	838	559	489	381	67 20-Φ35	1350	700
	14"	350	889	603	527	413	70 20-Φ38	1600	750
	16"	400	991	686	603	470	77 20-Φ41	1800	800
	18"	450	1092	743	654	533	83 20-Φ44	2110	900
	20"	500	1194	813	724	584	89 24-Φ44	2350	950
	24"	600	1397	940	838	692	102 24-Φ52	2900	1000
