Din Standard Floating Flange Ball Valve

Inquire Now Next Product

Product Description

The ball of the floating ball valve is floating. When the valve is closed, the pressure of the fluid causes the ball to move toward the valve seat, thereby closely contacting the valve seat and forming a seal. When the valve is opened, the rotation of the valve stem drives the ball to rotate, allowing the fluid to flow through the hole in the center of the ball.

Main Features of the Product:

Design Structure	Anti-static device/Anti-Blow out Fire Safe/ ISO 5211 Mounting Pad
Connection Ends	RF, BW
Operation	Lever, Gear, Electric, Pneumatic
Main Material	WCB, GG25, CF8, CF8M, SS321 etc.
Sealing Material	Soft seal (PTFE), PPL
Applications	Solvent, acid, water, natural gas, suitable for harsh working conditions etc.
Design & Manufacture	DIN3357
Face to Face	DIN3202-F4/F5
Flange Ends	EN1092-1
Inspection & Testing	EN12266
Leakage Class	Zero Leakage
Pressure Rating	PN16/PN40
Size Range	DN15-DN250

Main Advantage of the Product:

1) Excellent sealing performance;

2) Simple structure and high reliability;

3) Low fluid flow resistance;

4) Easy installation;

5) High durability and corrosion resistance;

6) Low opening pressure.

Technical Specifications:

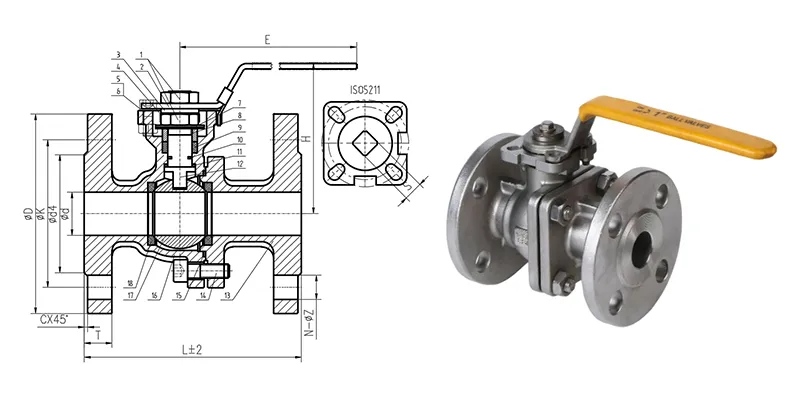

Din Standard Floating Flange Ball Valve

Main Dimension: PN16

NPS	L (mm)	d (mm)	d4 (mm)	K (mm)	D (mm)	N-Z	C	T (mm)
1/2"	115	15	45	65	95	4-14	2	14
3/4"	120	20	56	75	105	4-14	2	16
1"	125	25	66	85	115	4-14	2	16
1-1/4"	130	32	76	100	140	4-18	2	16
1-1/2"	140	40	86	110	150	4-18	3	16
2"	150	50	100	125	165	4-18	3	16
2-1/2"	170	65	120	145	185	8-18	3	16
3"	180	80	136	160	200	8-18	3	18
4"	190	100	156	180	220	8-18	3	18
5"	325	125	186	210	250	8-18	3	20
6"	350	150	210	240	285	8-22	3	20
8"	400	200	266	295	340	12-22	3	22

Main Dimension: PN40

NPS	L (mm)	d (mm)	d4 (mm)	K (mm)	D (mm)	N-Z	C	T (mm)
1/2"	115	15	45	65	95	4-14	2	14
3/4"	120	20	56	75	105	4-14	2	16
1"	125	25	66	85	115	4-14	2	16
1-1/4"	130	32	76	100	140	4-18	2	16
1-1/2"	140	40	86	110	150	4-18	3	16
2"	150	50	100	125	165	4-18	3	18
2-1/2"	170	65	120	145	185	8-18	3	20
3"	180	80	136	160	200	8-18	3	22
4"	190	100	156	190	235	8-22	3	22
6"	325	125	186	220	270	8-26	3	24
8"	400	200	266	320	375	12-30	3	32

Main Materials and Parts:

NO	PART NAME	MATERIAL
1	Nut	304
2	Handle	201+PVC
3	Washer	304
4	Anti-losing Bonnet	304
5	Nut	304
6	Hex Screws	304
7	Disc spring	304
8	Gland	304
9	Packing	PTFE
10	O-Ring	FKM
11	Thrust Gasket	PTFE
12	Stem	304/316
13	Bonnet	WCB/CF8/CF8M
14	Hex Screws	304
15	Gasket	PTFE
16	Body	WCB/CF8/CF8M
17	Ball	304/316
18	Seat	RPTFE
