2PC Forded Steel Threaded Ball Valve

2PC Forged steel thread Ball Valve is a common type of ball valve, mainly used for fluid control.Its structure consists of two parts: The valve body and valve cover are made by forging process.This design is easy to disassemble and maintain, and it is also easy to clean or replace internal parts, etc.

Inquire Now Next Product

Product Description

Main Features of the Product

End Connections	Threaded: NPT (ASME B1.20.1), Socket Weld (SW, ASME B16.11), Butt Weld (BW, ASME B16.25)
Operation	Lever, Pneumatic, etc.
Main Material	A105N, F304, F316, F321, LF2, etc.
Sealing Material	Soft Seal: PTFE, PPL, etc.
Applications	Water, Oil, Gas, etc.
Design & Manufacture	BS5351 / ISO17292
Testing & Inspection	API598
Leakage Class	Zero Leakage
Pressure Rating	150LB–1500LB; PN16–PN250
Size Range	1/2"–2" (DN15–DN50)

Main Advantage of the Product

1) High strength and durability;

2) Excellent sealing;

3) Long service life;

4) Low fluid resistance;

5) Strong adaptability;

Technical Specifications

2PC Forded Steel Threaded Ball Valve

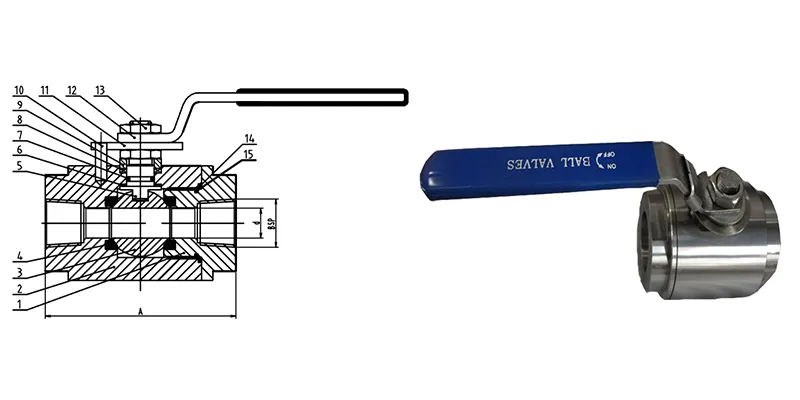

Main Dimension

NPS		A (Length)	d
DN15	1/2"	73	14
DN20	3/4"	97	19
DN25	1"	105	25
DN32	1-1/4"	118	32
DN40	1-1/2"	133	38
DN50	2"	148	50

Main Parts and Materials

NO.	Parts Name	Material Options
1	Body	A105N	F304	F316	F321
2	Bonnet	A105N	F304	F316	F321
3	Gasket	PTFE / RPTFE / PPL
4	Seat Ring	RPTFE / Nylon / Teflon
5	Ball	13CR	F304	F316	F321
6	Gasket	PTFE / RPTFE / PPL
7	Stem	13CR		F304	F316	F321
8	Packing	Flexible Graphite / PTFE
9	Gland	304
10	Pin	304
11	Nut	2H / SS
12	Handle	SS
