3PC Din Flange Ball Valve

DIN 3PC flange ball valve can be closed tightly by simply rotating it 90 degrees and applying a very small torque. The inner cavity of the valve body provides a very low resistance, straight flow path for the medium.

Inquire Now Next Product

Product Description

Main Features of the Product:

Design Structure	Anti-Blow out Fire Safe / ISO 5211 Mounting Pad
Connection Ends	FLG
Operation	Lever, Gear, Electric, Pneumatic
Main Material	WCB, CF8, CF8M, SS321 etc.
Sealing Material	Soft seal (PTFE), PPL
Design & Manufacture	DIN3357
Face to Face	DIN3202-F1
Flange Ends	EN1092-1
Inspection & Testing	EN12266
Leakage Class	Zero Leakage
Pressure Rating	PN16-PN40
Size Range	1/2" - 6" (DN15-DN150)
Applications	Water, solvents, acids and natural gas etc.

Main Advantage of the Product:

1).Compact structure;

2).Easy to operate and maintain;

3). Excellent sealing performance;

4).The valve body can be integral or combined.

Technical Specifications:

3PC Din Flange Ball Valve

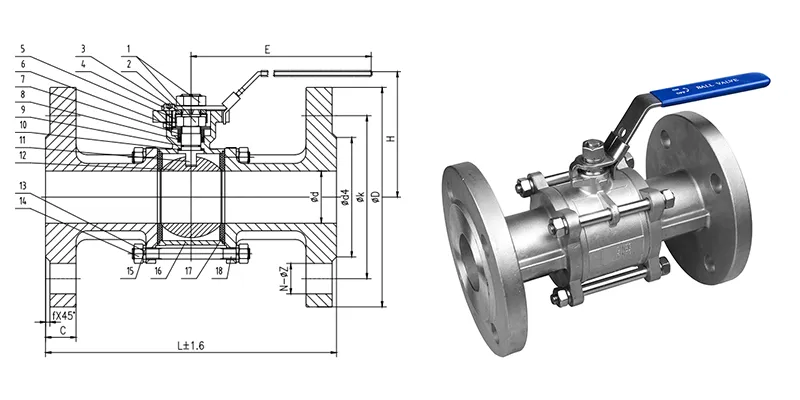

Main Dimension: PN16

ITEM\SIZE	DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100
d	15	20	25	32	38	50	65	80	100
do	45	55	65	78	85	100	120	135	155
K	65	75	85	100	110	125	145	160	180
D	95	105	115	140	150	165	180	195	215
C	14	14	14	16	18	18	18	20	20
f	2	2	2	3	3	3	3	3	3
N-ΦZ	4-Φ7	4-Φ14	4-Φ14	4-Φ18	4-Φ18	4-Φ18	4-Φ18	8-Φ18	8-Φ18
L	130	150	160	180	200	230	290	310	350
H	78	88	90	99	115	125	140	150	185
E	133	133	153	153	180	180	258	258	300

Main Dimension: PN40

ITEM\SIZE	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"	2 1/2"	3"	4"
d	15	20	25	32	38	49	65	80	100
do	46	58	68	78	88	102	122	138	162
K	65	75	85	100	110	125	145	160	190
D	95	105	115	140	150	165	185	200	235
C	16	18	18	18	18	20	22	24	24
f	2	2	2	2	3	3	3	3	3
N-ΦZ	4-Φ14	4-Φ14	4-Φ14	4-Φ18	4-Φ18	4-Φ18	8-Φ18	8-Φ18	8-Φ22
L	130	150	160	180	200	230	290	310	350
H	70	70	85	90	110	125	140	155	185
E	125	125	155	155	185	185	260	260	300
ISO5211	F03	F03	F04	F04	F05	F05	F07	F07	F07
ISO5211	F04	F04	F05	F05	F07	F07	F10	F10	F10
S	9	9	11	11	14	14	17	17	19

Main Materials and Parts:

NO	PART NAME	MATERIAL
1	Nut	304
2	Handle	201+PVC
3	Washer	304
4	Hex Screws	304
5	Anti-losing Bonnet	304
6	Disc spring	304
7	Gland	304
8	Packing	PTFE
9	O-Ring	FKM
10	Thrust Gasket	PTFE
11	Stem	304/316
12	Ball	304/316
13	Spring Washer	304
14	Nut	304
15	Bonnet	WCB/CF8/CF8M
16	Body	WCB/CF8/CF8M
17	Seat	PTFE
18	Bolt	304
