Jis Standard Flange Globe Valve

The opening and closing parts of the JIS standard Globe valve are the valve disc, the flow direction is low in and high out, the stop valve is fully opened and fully closed, and the valve is operated by the valve stem. The conical valve disc can play a good throttling role, but cannot play a regulating role.

Inquire Now Next Product

Product Description

Main Features of the Product:

Size Range	DN15-DN500
Pressure Range	10K~20K
Connection Ends	RF, BW, RTJ, FM
Main Material	G5121-SCS13, SCS13A, SCS14, SCS14A, SCS19A, SCPH2, FCD450, FCD500 etc...
Bonnet Type	Bolted Bonnet
Operation	Manual Hand wheel, Gear, Electric, Pneumatic etc...
Design and Manufacture	JIS B2071, ASME B16.34;
Face to Face	JIS B2002;
Flange ends	JIS B2220;
Testing & Inspection	JIS B2003;
Applications	Water Systems, pharmaceutical, Oil and Gas Industry, Power Plants, fertilizer, Chemical etc...

Main Advantage of the product:

1) Excellent sealing performance;

2) Short opening and closing stroke;

3) Strong pressure and high temperature resistance;

4) Good directionality;

5) Excellent adjustment performance.

Technical Specifications:

Jis Standard Flange Globe Valve

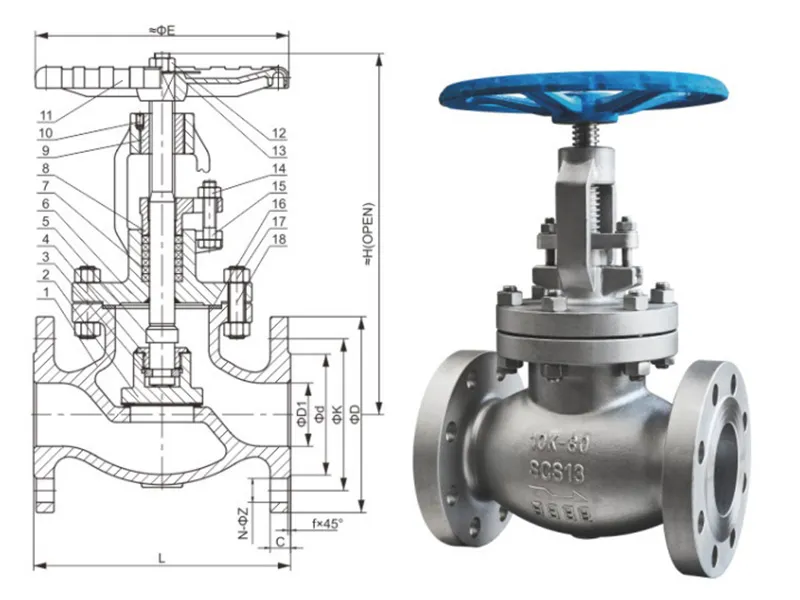

Main Dimension:10K

NPS	D1	L	d	K	D
50A	50	203	96	120	155
65A	65	216	116	140	175
80A	80	241	126	150	185
100A	100	292	151	175	210
125A	125	356	182	210	250
150A	150	406	212	240	280
200A	200	495	262	290	330
250A	250	622	324	355	400
300A	300	698	368	400	445
350A	350	787	413	445	490
400A	400	914	475	510	560
450A	450	978	530	565	620
500A	500	978	585	620	675

Main Dimension:20K

NPS	D1	L	d	K	D
50A	50	267	96	120	155
65A	65	292	116	140	175
80A	80	318	132	160	200
100A	100	356	160	185	225
125A	125	400	195	225	270
150A	150	444	230	260	305
200A	200	559	275	305	350
250A	250	622	345	380	430
300A	300	711	395	430	480
350A	350	762	440	480	540
400A	400	864	495	540	605
450A	450	978	560	605	675
500A	500	1016	615	665	730
