Api Standard Flange Globe Valve

API standard Globe Valve complies with ANSI and API standards. The sealing surfaces of the valve disc and valve seat are made of Stellite cobalt-based cemented carbide with different hardness.

Inquire Now Next Product

Product Description

API standard Globe Valve complies with ANSI and API standards. The sealing surfaces of the valve disc and valve seat are made of Stellite cobalt-based cemented carbide with different hardness. It has reliable sealing, high hardness, wear resistance, high temperature resistance, corrosion resistance, good abrasion resistance and long service life.

Main Features of the Product:

Size Range	2" - 40" (DN50-DN1000)
Pressure Range	150LB~2500LB
Connection Ends	RF, BW, RTJ, FM
Main Material	WCB, WCC, LCB, LCC, GGG50, GGG40, CF8, CF8M, 2205, Duplex Stainless steel etc.
Bonnet Type	Pressure Self-sealing and Bolted Bonnet
Operation	Manual Hand wheel, Gear, Electric, Pneumatic etc.
Design and Manufacture	BS1873; ASME B16.34
Face to Face	ASME B16.10
Connection ends	ASME B16.5 and ASME B16.47 A; ASME B16.25
Testing & Inspection	API598
Applications	Water Systems, pharmaceutical, Oil and Gas Industry, Power Plants, fertilizer, Chemical etc.

Main Advantage of the product:

1) Excellent sealing performance;

2) Short opening and closing stroke;

3) Strong pressure and high temperature resistance;

4) Good directionality;

5) Excellent adjustment performance.

Technical Specifications:

Api Standard Flange Globe Valve

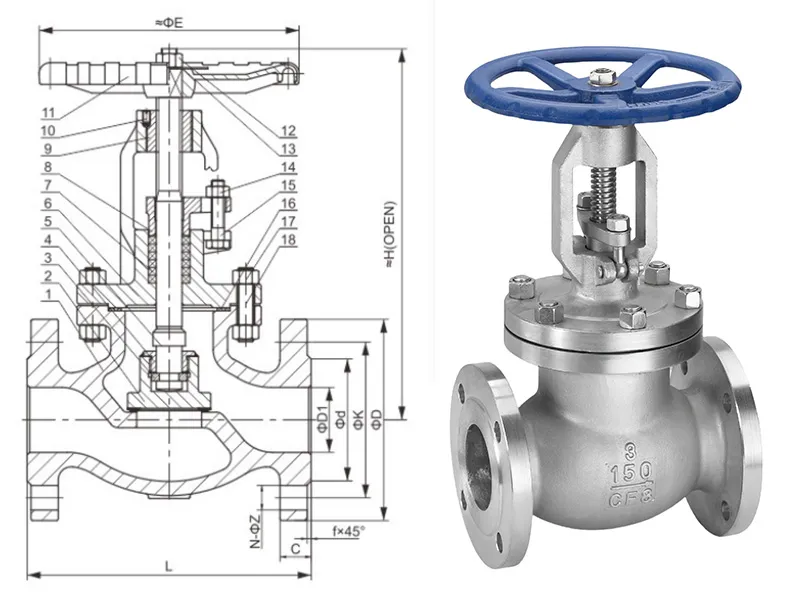

Main Dimension:

DN	CLASS	NPS	150LB (L mm)	300LB (L mm)	600LB (L mm)	900LB (L mm)	1500LB (L mm)
50	2"		203	267	292	368	368
65	2-1/2"		216	292	330	419	419
80	3"		241	318	356	381	470
100	4"		292	356	432	457	546
125	5"		356	400	508	559	673
150	6"		406	444	559	610	705
200	8"		495	559	660	737	832
250	10"		622	622	787	838
300	12"		698	711	838
350	14"		787	762	889
400	16"		914	864	991
450	18"		978	978
500	20"		978	1016
