DIN Bellow Seal Globe Valve

Bellows Globe valve is a Globe valve that uses a bellows as a sealing element to ensure sealing performance.Its main function is to control the flow of fluid and prevent leakage.

Share:

Product Description

Bellows Globe valve is a Globe valve that uses a bellows as a sealing element to ensure sealing performance.Its main function is to control the flow of fluid and prevent leakage.



Main Features of the Product:



Size Range 1-1/2" - 40" (DN40-DN1000)
Pressure Range PN16~PN160
Connection Ends Flange / Butt Weld
Main Material WCB, WCC, LCB, LCC, CF8, CF8M, 2205, Duplex Stainless steel etc.
Operation Manual Hand wheel, Gear, Electric, Pneumatic etc.
Design and Manufacture DIN3356
Face to Face DIN3202
Connection ends DIN2501 (RF), DIN3239(BW)
Testing & Inspection DIN3352
Applications

Petroleum, chemical, electric power, pharmaceutical, metallurgy, new energy etc.



Structural features:



1. The product has a reasonable structure, reliable sealing, double sturdy and durable bellows sealing design (bellows + packing), zero leakage of the valve stem. No fluid loss, reduced energy loss, improved factory equipment safety. And meets the sealing standards.



2. The valve disc adopts a conical design, the sealing surface and the medium are streamlined, the sealing performance is better, and the service life is longer.



Technical Specifications:

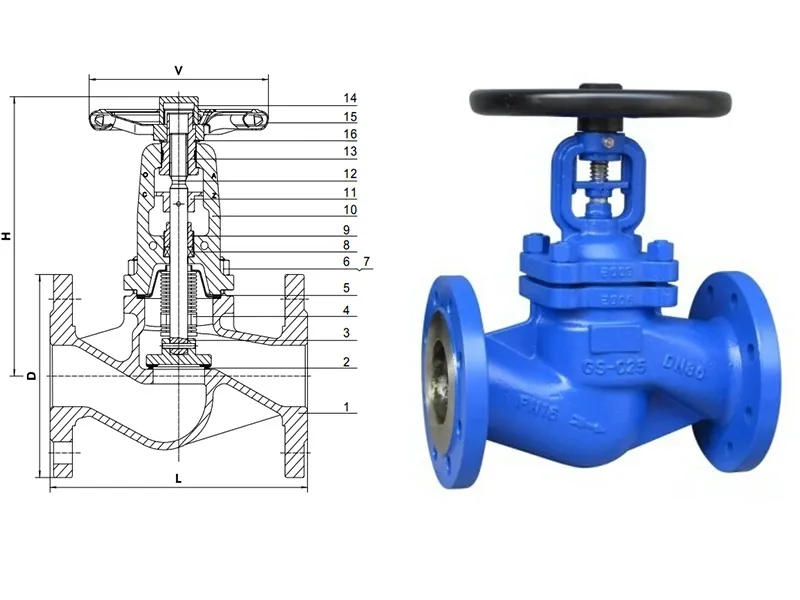

DIN Bellow Seal Globe Valve



DIN Bellow Seal Globe Valve Main Dimensions(Length)
Pressure PN16 PN25 PN40
DN NPS (mm) (mm) (mm)
15 1/2" 130 130 130
20 3/4" 150 150 150
25 1" 160 160 160
32 1-1/4" 180 180 180
40 1-1/2" 200 200 200
50 2" 230 230 230
65 2-1/2" 290 290 290
80 3" 310 310 310
100 4" 350 350 350
125 5" 400 400 400
150 6" 480 480 480
200 8" 600 600 600
250 10" 730 730 730
300 12" 850 850 850
350 14" 980 980 980
400 16" 1100 1100 1100
