Din Standard Flange Globe Valve

The opening and closing parts of the DIN standard Globe valve are the valve disc, the flow direction is low in and high out, the stop valve is fully opened and fully closed, and the valve is operated by the valve stem. The conical valve disc can play a good throttling role, but cannot play a regulating role.

Inquire Now Next Product

Product Description

Main Features of the Product:

Size Range	DN15-DN1000
Pressure Range	PN10~PN250
Connection Ends	RF, BW, RTJ, FM
Main Material	WCB, WCC, LCB, LCC, GGG50, GGG40, CF8, CF8M, 2205, Duplex Stainless steel etc.
Bonnet Type	Pressure Self-sealing and Bolted Bonnet
Operation	Manual Hand wheel, Gear, Electric, Pneumatic etc.
Design and Manufacture	DIN3356
Face to Face	DIN3202-F1
Connection ends	EN1092-1:2001
Testing & Inspection	API598
Applications	Water Systems, pharmaceutical, Oil and Gas Industry, Power Plants, fertilizer, Chemical etc.

Main Advantage of the Product:

1) Excellent sealing performance;

2) Short opening and closing stroke;

3) Strong pressure and high temperature resistance;

4) Good directionality;

5) Excellent adjustment performance.

Technical Specifications:

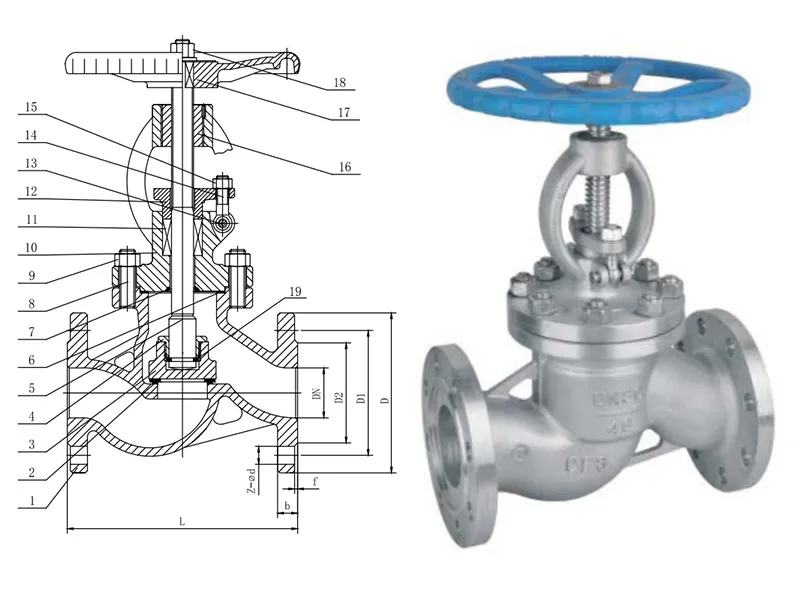

Din Standard Flange Globe Valve

Main Dimension: PN16

DN	L	D	D1	D2	b	z-Φd	f
DN15	130	Φ95	Φ65	Φ45	16	4-Φ14	2
DN20	150	Φ105	Φ75	Φ58	18	4-Φ14	2
DN25	160	Φ115	Φ85	Φ68	18	4-Φ14	2
DN32	180	Φ140	Φ100	Φ78	18	4-Φ18	2
DN40	200	Φ150	Φ110	Φ88	18	4-Φ18	3
DN50	230	Φ165	Φ125	Φ102	18	4-Φ18	3
DN65	290	Φ185	Φ145	Φ122	18	8-Φ18	3
DN80	310	Φ200	Φ160	Φ138	20	8-Φ18	3
DN100	350	Φ220	Φ180	Φ158	20	8-Φ18	3
DN125	400	Φ250	Φ210	Φ188	22	8-Φ18	3
DN150	480	Φ285	Φ240	Φ212	22	8-Φ22	3
DN200	600	Φ340	Φ295	Φ268	24	12-Φ22	3
DN250	730	Φ405	Φ355	Φ320	26	12-Φ26	3
DN300	850	Φ460	Φ410	Φ378	28	12-Φ26	4
DN350	980	Φ520	Φ470	Φ438	30	16-Φ26	4
DN400	1100	Φ580	Φ525	Φ490	32	16-Φ30	4
DN450	1200	Φ640	Φ585	Φ550	40	20-Φ30	4
DN500	1250	Φ715	Φ650	Φ610	44	20-Φ33	4

Main Dimension: PN40

DN	L	D	D1	D2	b	f	z-Φd
15	130	Φ95	Φ65	Φ45	16	2	4-Φ14
20	150	Φ105	Φ75	Φ58	18	2	4-Φ14
25	160	Φ115	Φ85	Φ68	18	2	4-Φ14
32	180	Φ140	Φ100	Φ78	18	2	4-Φ18
40	200	Φ150	Φ110	Φ88	18	3	4-Φ18
50	230	Φ165	Φ125	Φ102	20	3	4-Φ18
65	290	Φ185	Φ145	Φ122	22	3	8-Φ18
80	310	Φ200	Φ160	Φ138	24	3	8-Φ18
100	350	Φ235	Φ190	Φ162	24	3	8-Φ22
125	400	Φ270	Φ220	Φ188	26	3	8-Φ26
150	480	Φ300	Φ250	Φ218	28	3	8-Φ26
200	600	Φ375	Φ320	Φ285	34	3	12-Φ30
250	730	Φ450	Φ385	Φ345	38	3	12-Φ33
300	850	Φ515	Φ450	Φ410	42	4	16-Φ33
