200WOG Thread Globe Valve is a type of valve designed to regulate or isolate the flow of liquids or gases in a piping system. The term "200WOG" refers to its pressure rating and the type of fluid it can handle, while "Thread" refers to the type of end connections for the valve.
Product Description
200WOG Thread Globe Valve is a type of valve designed to regulate or isolate the flow of liquids or gases in a piping system. The term "200WOG" refers to its pressure rating and the type of fluid it can handle, while "Thread" refers to the type of end connections for the valve.
● 200: This number refers to the pressure rating of the valve in terms of WOG, which stands for Water, Oil, and Gas. This means that the valve is rated for a maximum working pressure of 200 PSI (pounds per square inch) when handling water, oil, or gas.
● WOG: Indicates the type of media (water, oil, and gas) that the valve can safely handle. This rating indicates the valve's pressure tolerance for these fluids.
| Threaded End Connections | BSPP,BSPT,NPT ,SW ..... |
| Operation | Manual, Pneumatic... |
| Main Material | Brass, Bronze, CF8,CF8M,WCB etc... |
| Sealing Material | soft seal (PTFE) Or Metal to Metal (304/316 etc...) |
| Applications | Water Systems,Oil & Gas,General Piping Systems |
| Compact and Lightweight Design | Threaded valve, easily connected to piping without welding, simplifies installation process. |
| Precise Flow Control | Designed for throttling, provides excellent control over fluid flow, ideal for precise regulation. |
| Good Sealing Performance | Sealing design provides tight shut-off, crucial for preventing leakage when fully closed. |
| Face to Face | MFD or according to customer's size standards. |
| Leakage Class | Zero Leakage |
| Pressure Rating | 200PSI/WOG |
| Size Range | 1/2" - 4" (DN15-DN100) |
| DN | NPS | L | Weight (KG) |
| 15 | 1/2" | 59 | 0.333 |
| 20 | 3/4" | 69.5 | 0.43 |
| 25 | 1" | 78.5 | 0.61 |
| 32 | 11/4" | 89 | 0.91 |
| 40 | 11/2" | 103.5 | 1.34 |
| 50 | 2" | 117 | 1.9 |
| 65 | 21/2" | 165 | 3.95 |
| 80 | 3" | 189 | 5.3 |
| 100 | 4" | 228 | 10 |

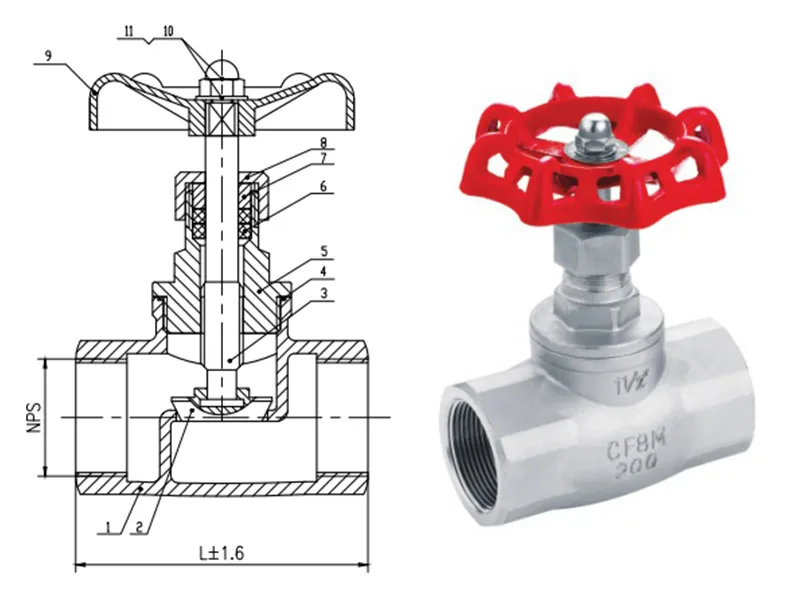

| NO. | PART NAME | MATERIAL | NO. | PART NAME | MATERIAL |
| 1 | Body | CF8/CF8M | 7 | Gland | 304 |
| 2 | Disc | CF8/CF8M | 8 | Nut | 304 |
| 3 | Stem | 304/316 | 9 | Handwheel | HT200 |
| 4 | seal Ring | PTFE | 10 | pad | 304 |
| 5 | Bonnet | CF8/CF8M | 11 | Nut | 304 |
| 6 | Packing | PTFE | 12 |
