Y type thread strainer is an indispensable filtering device in the pipeline system for conveying media. Y type thread strainer is usually installed at the inlet end of pressure reducing valve, pressure relief valve, water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment.
Product Description
Y type thread strainer is an indispensable filtering device in the pipeline system for conveying media. Y type thread strainer is usually installed at the inlet end of pressure reducing valve, pressure relief valve, water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment. It mainly has the characteristics of advanced structure, small resistance and convenient sewage discharge.
| Size Range | 1/2" - 4" (DN15-DN100) |
| Pressure | 800WOG |
| Threaded End Connections | BSPT, NPT, BSPP, SW... |
| Main Material | CF8, CF8M, CF3, CF3M |
| Screen Material | 304, 316 |
| Applications | Water Systems, Oil & Gas, Liquid etc... |
1) Excellent sealing performance;
2) Easy maintenance;
3) Effectively intercepts solid impurities in the pipeline;

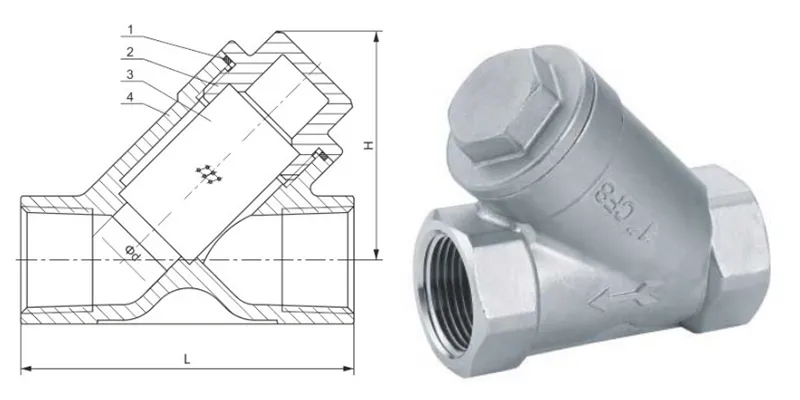

| NPS | d (mm) | L (mm) | H (mm) |
| 1/2" | 13 | 60 | 38 |
| 3/4" | 17 | 75 | 44 |
| 1" | 22 | 85 | 52 |
| 1-1/4" | 30 | 105 | 63 |
| 1-1/2" | 36 | 110 | 72 |
| 2" | 47 | 127 | 85 |
