Forged Thread Y Strainer

Y type forged thread strainer is an indispensable filtering device in the pipeline system for conveying media. Y type thread strainer is usually installed at the inlet end of pressure reducing valve, pressure relief valve, water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment.

Inquire Now Next Product

Product Description

Main Features of the Product:

Size Range	1/2" - 2" (DN15-DN100)
Pressure Range	150LB - 1500LB
Threaded End Connections	BSPT, NPT, SW...
Main Material	A105, F11, LF2, F304, F316, F22, F51, F53, F321 etc...
Design and Manufacture	BS5352 MSS SP-118;
Connection ends	SW→ANSI B16.11; NPT→ANSI B1.20.1; BW→ANSI B16.25;
Testing & Inspection	API598
Applications	Water Systems, Oil & Gas, Liquid etc...

Maid Advantage of the Product:

1) Excellent sealing performance;

2) Easy maintenance;

3) Effectively intercepts solid impurities in the pipeline;

Technical Specifications:

Forged Thread Y Strainer

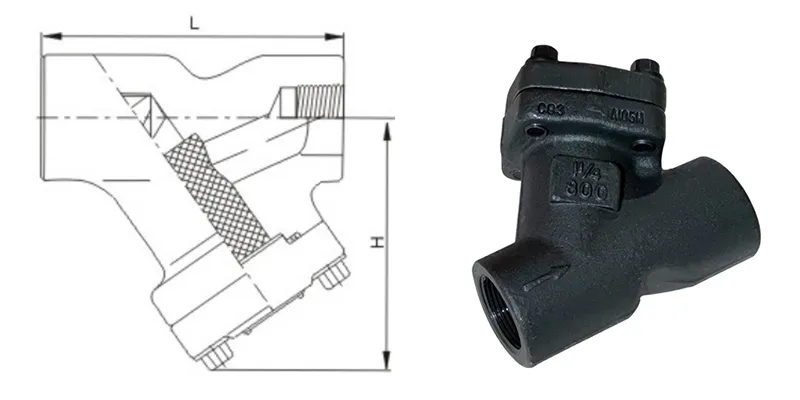

Main Dimension:

CLASS 800LB (MM)
NPS	L	d	H
1/2"	79	9	70
3/4"	92	13	70
1"	100	17.5	100
1-1/4"	140	30	110
1-1/2"	140	30	120
2"	155	35	120
CLASS 900LB (MM)
1/2"	111	12	70
3/4"	111	15	100
1"	140	20	110
1-1/4"	140	28	120
1-1/2"	155	32	120
2"	170	40	150
CLASS 1500LB (MM)
1/2"	111	12	70
3/4"	111	15	100
1"	140	20	110
1-1/4"	140	28	120
1-1/2"	155	32	120
2"	170	40	150
