DIN Standard Flange Standard Y Strainer

Flange Y-type strainer is a necessary filtering device for hydraulic control valves and mechanical products that are prone to clogging. It is an indispensable device for pipeline series that convey media.

Inquire Now Next Product

Product Description

Y-type strainer is usually installed at the inlet end of control valves, pressure reducing valves, pressure relief valves and other equipment to eliminate impurities in the medium and prevent granular impurities from entering the channel and causing clogging, so as to protect the accessories on the equipment pipeline from wear and clogging.

Main Features of the Product:

Size Range	DN15-DN400
Pressure Range	PN16-PN63
Connection Ends	RF, BW, RTJ
Main Material	WCB, LCB, GGG50, GGG40, CF8, CF8M, 2205, Duplex Stainless steel etc.
Design and Manufacture	BS1873
Face to Face	ASME B16.10
Flange ends	EN1092-1:2001
Testing & Inspection	API598
Applications	Water treatment, oil and gas, chemical and pharmaceutical industries, construction and industrial water

Main Advantage of the Product:

1) Compact structure and small size;

2) Low flow resistance;

3) Flexible installation;

4) Easy maintenance;

Technical Specifications:

DIN Standard Flange Standard Y Strainer

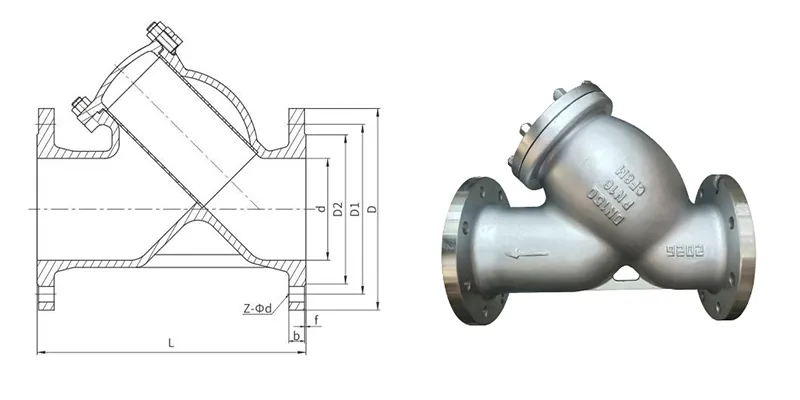

Main Dimension:

PN16(Unit:mm)
NPS	L	d	D	D1	D2	b	z-d
DN15	130	15	95	65	45	16	4-14
DN20	150	20	105	75	58	18	4-14
DN25	160	25	115	85	68	18	4-14
DN32	180	32	140	100	78	18	4-18
DN40	200	40	150	110	88	18	4-18
DN50	230	50	165	125	102	18	4-18
DN65	290	65	185	145	122	18	8-18
DN80	310	80	200	160	138	20	8-18
DN100	350	100	220	180	158	20	8-18
DN125	400	125	250	210	188	22	8-18
DN150	480	150	285	240	212	22	8-22
DN200	600	200	340	295	268	24	12-22
DN250	730	250	405	355	320	26	12-26
DN300	850	300	460	410	378	28	12-26
DN350	980	350	520	470	438	30	16-26
DN400	1100	400	580	525	490	32	16-30

PN25(Unit:mm)
NPS	L	d	D	D1	D2	b	z-d
DN15	130	15	95	65	45	16	4-14
DN20	150	20	105	75	58	18	4-14
DN25	160	25	115	85	68	18	4-14
DN32	180	32	140	100	78	18	4-18
DN40	200	40	150	110	88	18	4-18
DN50	230	50	165	125	102	20	4-18
DN65	290	65	185	145	122	22	8-18
DN80	310	80	200	160	138	24	8-18
DN100	350	100	235	190	162	24	8-22
DN125	400	125	270	220	188	26	8-26
DN150	480	150	300	250	218	28	8-26
DN200	600	200	360	310	278	30	12-26
DN250	730	250	425	370	335	32	12-30
DN300	850	300	485	430	395	34	16-30
DN350	980	350	555	490	450	38	16-33
DN400	1100	400	620	550	505	40	16-36

PN40(Unit:mm)
NPS	L	d	D	D1	D2	b	z-d
DN15	130	15	95	65	45	16	4-14
DN20	150	20	105	75	58	18	4-14
DN25	160	25	115	85	68	18	4-14
DN32	180	32	140	100	78	18	4-18
DN40	200	40	150	110	88	18	4-18
DN50	230	50	165	125	102	20	4-18
DN65	290	65	185	145	122	22	8-18
DN80	310	80	200	160	138	24	8-18
DN100	350	100	235	190	162	24	8-22
DN125	400	125	270	220	188	26	8-26
DN150	480	150	300	250	218	28	8-26
DN200	600	200	375	320	285	34	12-30
DN250	730	250	450	385	345	38	12-33
DN300	850	300	515	450	410	42	16-33
DN400	1100	400	620	550	505	42	16-36

PN63(Unit:mm)
NPS	L	d	D	D1	D2	b	z-d
DN15	130	15	105	75	45	20	4-14
DN20	150	20	130	90	58	22	4-18
DN25	160	25	140	100	68	24	4-18
DN32	180	32	155	110	78	26	4-22
DN40	200	40	170	125	88	28	4-22
DN50	230	50	180	135	102	26	4-22
DN65	290	65	205	160	122	26	8-22
DN80	310	80	215	170	138	28	8-22
DN100	350	100	250	200	162	30	8-26
DN125	400	125	295	240	188	34	8-30
DN150	480	150	345	280	218	36	8-33
DN200	600	200	415	345	285	42	12-36
DN250	730	250	470	400	345	46	12-36
DN300	850	300	535	460	410	52	16-36
