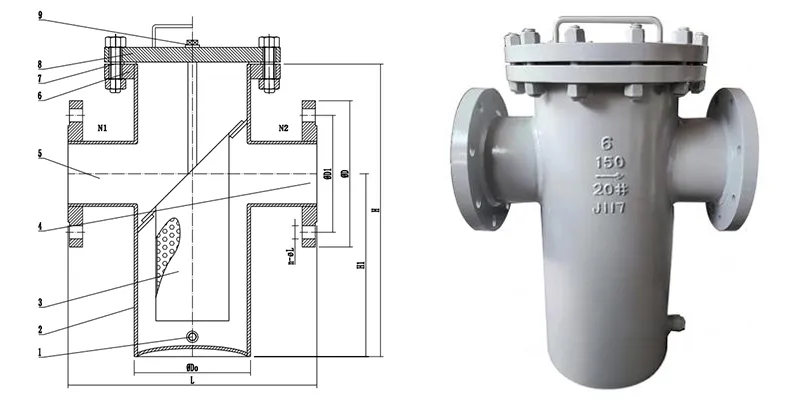

The Basket Strainer is used for pipeline applications that require extra large capacity. It is used to protect pipes、valves、pumps、and can reduce frequent cleaning, saving time and cost.
Product Description
The Basket Strainer is used for pipeline applications that require extra large capacity. It is used to protect pipes、valves、pumps、and can reduce frequent cleaning, saving time and cost. The Blue Filter requires regular removal of the filter screen for cleaning.The Basket strainer has a larger open area than the Y type strainer.
| Size Range | 2" - 24" (DN50-DN600) |
| Pressure Range | 150LB ~ 300LB |
| Connection Ends | RF, BW, RTJ, FM |
| Main Material | WCB, WCC, LCB, LCC, CF8, CF8M, 2205, Duplex Stainless steel etc. |
| Design and Manufacture | ASME B16.34 |
| Face to Face | ASME B16.10 |
| Connection Ends | ASME B16.5 |
| Testing & Inspection | API598 |
| Applications | Water treatment, oil and gas, chemical and pharmaceutical industries, construction and industrial water |
1) Simple structure and easy installation;
2) Large filtration area and low resistance;
3) Easy maintenance;
4) Protects equipment.

| CLASS | DN | L | CLASS | DN | L |
| 150LB | 1" | 220 | 300LB | 1" | 220 |
| 150LB | 1-1/4" | 220 | 300LB | 1-1/4" | 220 |
| 150LB | 1-1/2" | 280 | 300LB | 1-1/2" | 280 |
| 150LB | 2" | 280 | 300LB | 2" | 280 |
| 150LB | 2-1/2" | 330 | 300LB | 2-1/2" | 330 |
| 150LB | 3" | 340 | 300LB | 3" | 340 |
| 150LB | 4" | 420 | 300LB | 4" | 420 |
| 150LB | 5" | 500 | 300LB | 5" | 500 |
| 150LB | 6" | 500 | 300LB | 6" | 500 |
| 150LB | 8" | 560 | 300LB | 8" | 560 |
| 150LB | 10" | 660 | 300LB | 10" | 660 |
| 150LB | 12" | 750 | 300LB | 12" | 750 |
| 150LB | 14" | 800 | 300LB | 14" | 800 |
| 150LB | 16" | 850 | 300LB | 16" | 850 |
| 150LB | 18" | 960 | 300LB | 18" | 960 |
| 150LB | 20" | 1080 | 300LB | 20" | 1080 |
