The thread vertical check valve has the characteristics of high precision, beautiful appearance, small shape, spring device, and can be installed vertically or horizontally. It is mainly used to prevent the back flow of media in pipeline systems.
Product Description
The thread vertical check valve has the characteristics of high precision, beautiful appearance, small shape, spring device, and can be installed vertically or horizontally. It is mainly used to prevent the back flow of media in pipeline systems.
| Nominal pressure | PN16-PN64;1000WOG |
| Size Range | 1/2”-4”(DN15-DN100) |
| Main Material | CF8,CF8M.SS304,SS316,SS321... |
| Thread ends | BSPT,NPT,DIN2999 |
| Face to Face | MFD Or according to customer's size standards; |
| Applications scope | Petroleum chemical industry, electric power, metallurgy, medicine and other industries. |
1. Low fluid resistance
2. Easy to install and maintain;
3. Automatic reverse flow control;
4. Compact design;

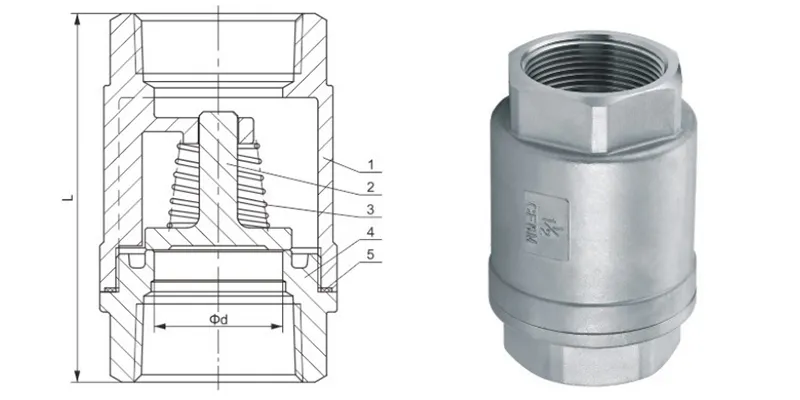

| NPS | d (mm) | L (mm) |
| 1/2" | 14 | 60 |
| 3/4" | 18 | 68 |
| 1" | 24 | 80 |
| 1-1/4" | 31 | 86 |
| 1-1/2" | 38 | 100 |
| 2" | 47 |
118 |
| Part Name | Material |
| Body | CF8 / CF8M |
| Disc | CF8 / CF8M |
| Spring | 304 / 316 |
| Bonnet | CF8 / CF8M |
| Gasket | PTFE |
