Casting Thread Swing Check Valve

Applications scope: Petrochemical, Power, Metallurgy, Pharmaceuticals, and other industrie.

Inquire Now Next Product

Thread Swing Check Valve

Thread Swing Check Valve is a specific type of Check Valve characterized by its threaded end connections.

It operates on the standard swing check principle: a disc (the "swing") inside the valve body pivots freely. Forward flow pushes the disc open; when flow ceases or reverses, the disc swings closed by gravity and backpressure to prevent reverse flow.As a professional industrial valve manufacturer, Wenzhou Chenyu Valve Co., Ltd. (Chenyu Valves) supplies high-quality Thread Swing Check Valves. These valves are built to relevant standards, offering reliable sealing and durability for preventing backflow in compact, threaded piping systems.

Main Features of Thread Swing Check Valve

Threaded End Connections	BSPT, NPT, DIN2999, etc.
Main Material	304L, 316L, CF8, CF8M, etc.
Applications Scope	Water, Oil, Gas, etc.
Face to Face	MFD or according to customer's size standards
Pressure Rating	2000 WOG / 2000 PSI
Size Range	1/2" – 4" (DN15 – DN100)
Applications scope	Petrochemical, Power, Metallurgy, Pharmaceuticals, and other industries

Main Advantage of Thread Swing Check Valve

1).Simple structure;

2).Excellent sealing performance;

3).Suitable for high flow rates and large flow rates.;

4).Corrosion and high temperature resistance;

5).Reduce shock and vibration;

Technical Specifications:

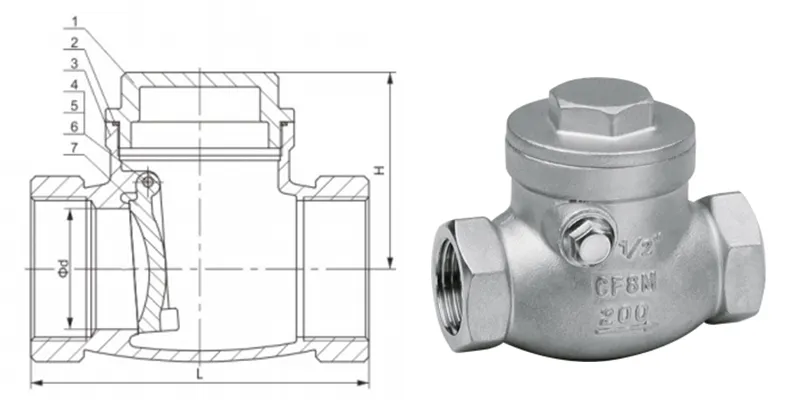

Casting Thread Swing Check Valve

Main Dimension:

NPS	d (mm)	L (mm)	H (mm)
1/2"	15	65	44
3/4"	20	80	53
1"	25	90	58
1-1/4"	32	105	62
1-1/2"	40	120	73
2"	50	141	78

Main Materials and Parts

NO.	Main Parts	Material
1	Bonnet	CF8/CF8M
2	Gasket	PTFE
3	Body	CF8/CF8M
4	Screw	S.S
5	Pin	S.S
6	Gasket	PTFE
7	Disc	CF8/CF8M
